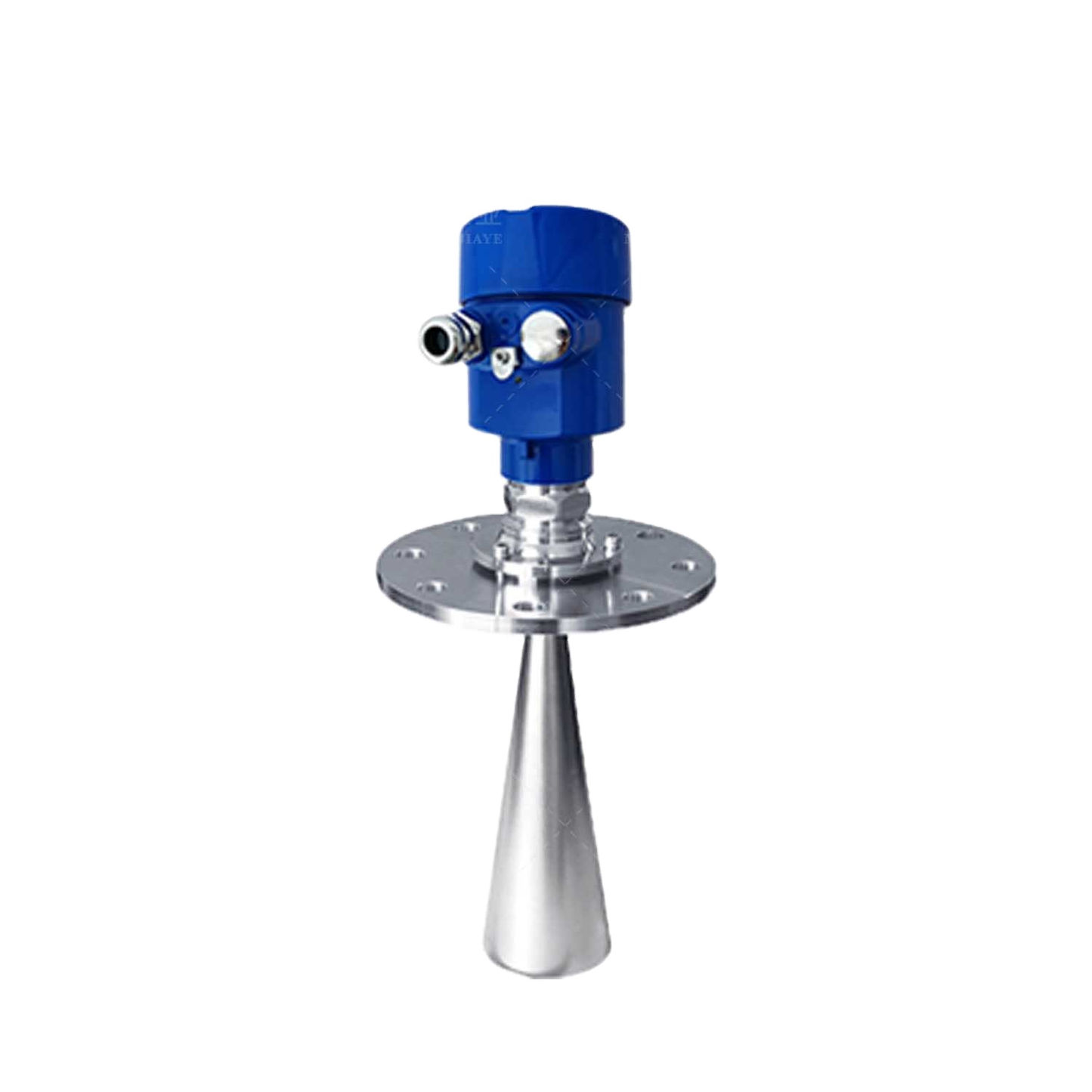

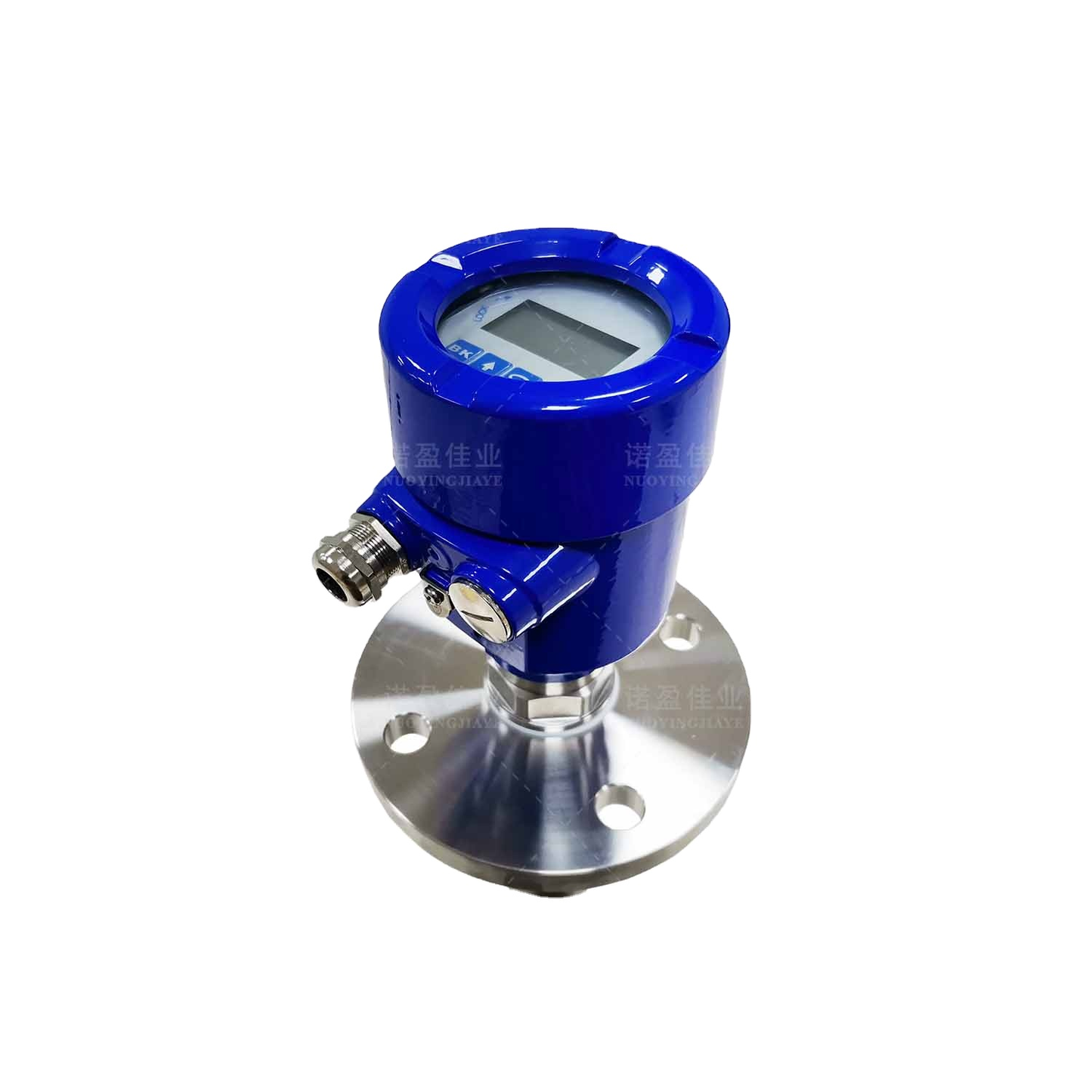

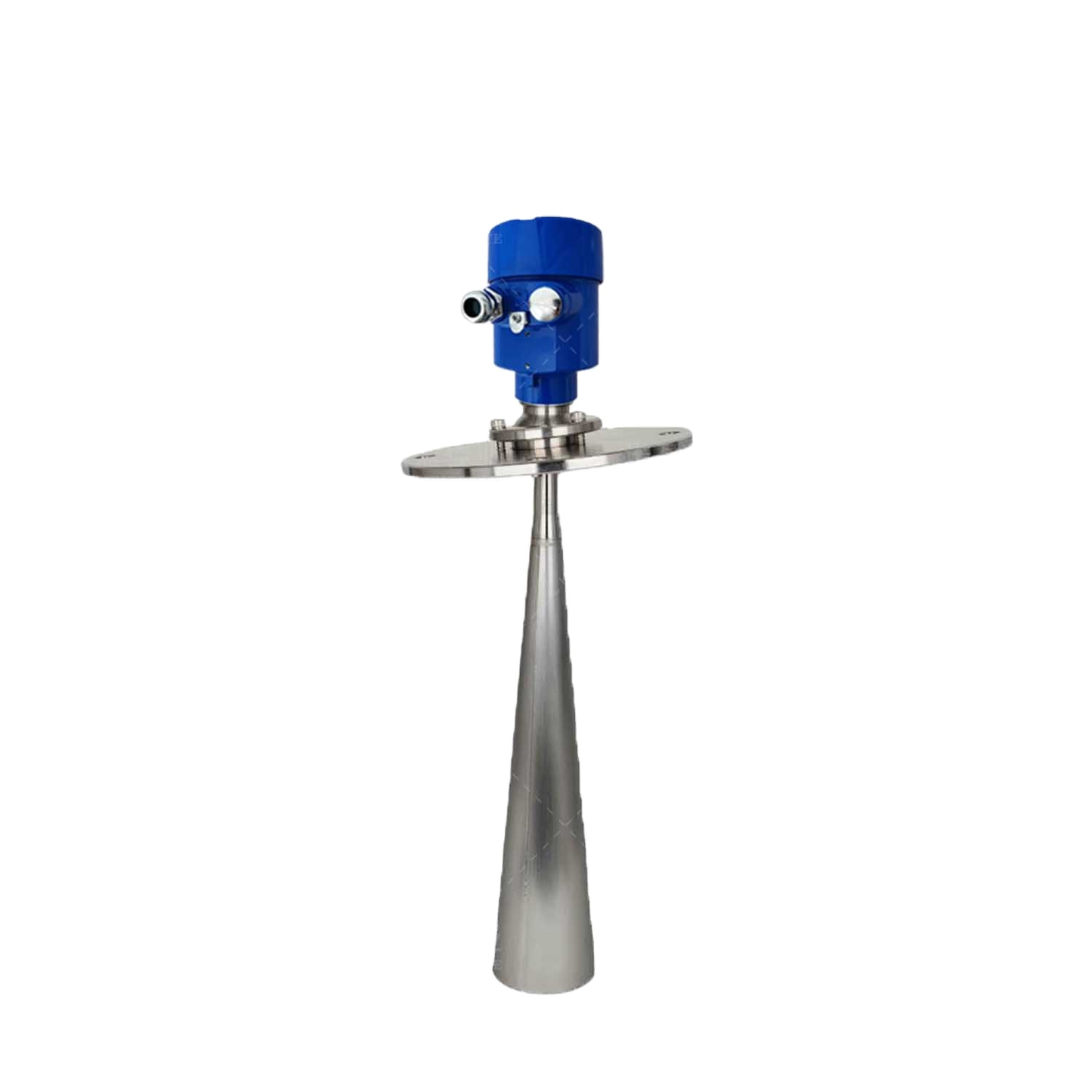

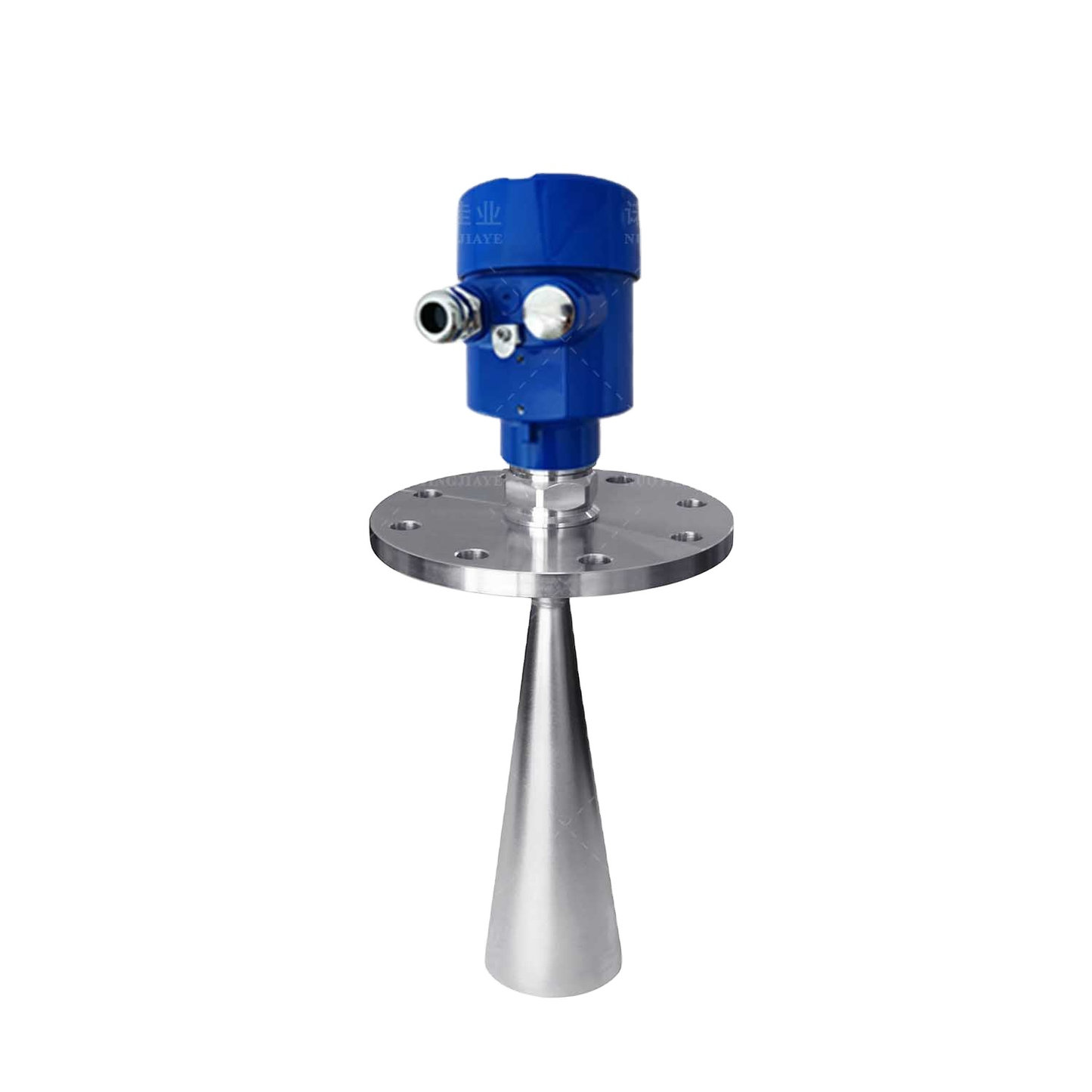

NYRD-809 Radar Level Transmitter
Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The antenna is further optimized, and the new fast microprocessor can carry out higher rate signal analysis and processing, making the instrument can be used in reaction kettle, solid bin and some complex measurement conditions.
Operating principle
The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Spiral bottom surface or sealing surface of flange.
Key Advantages

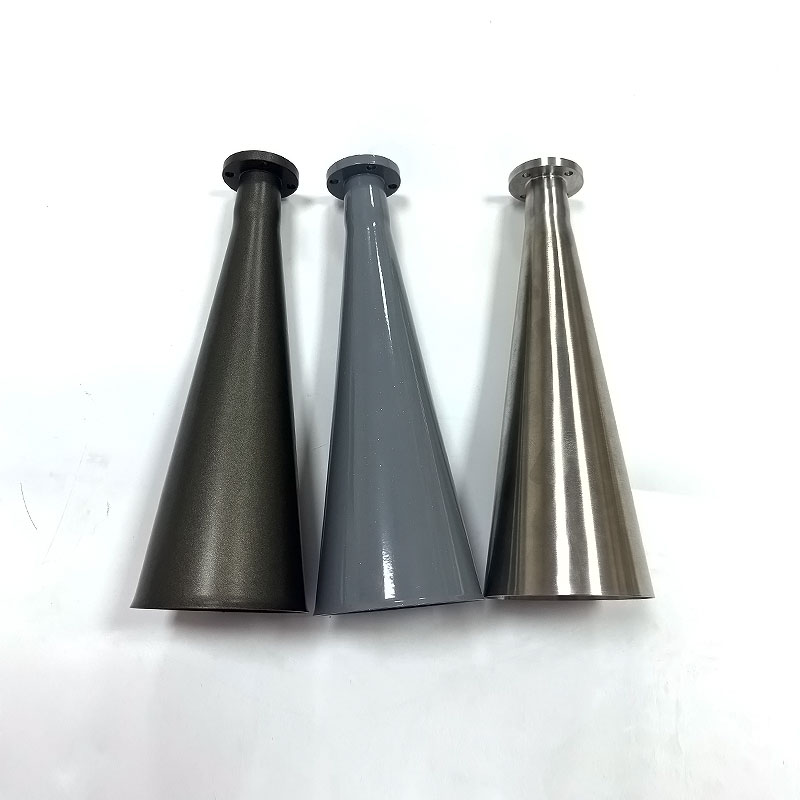

1. Antenna size is small, easy to install, non-contact radar, no wear, no pollution.
2. Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
3. Serious dust environment has little effect on the work of high frequeney level meter.
4. Shorter wavelengths, better reflection of sloping solid surfaces.
5. Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interfere
6. The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7. High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
8. High frequency, is the best choice for measuring solid and low dielectric constant media.
2. Almost impervious to corrosion and foam. Not affected by medium density, temperature and pressure change.
3. Serious dust environment has little effect on the work of high frequeney level meter.
4. Shorter wavelengths, better reflection of sloping solid surfaces.
5. Beam Angle is small, energy concentration, enhance the echo ability at the same time is conducive to avoid interfere
6. The measurement blind area is smaller, and good results can be achieved for small tank measurement.
7. High signal-to-noise ratio, even in the case of fluctuations can achieve better performance.
8. High frequency, is the best choice for measuring solid and low dielectric constant media.
