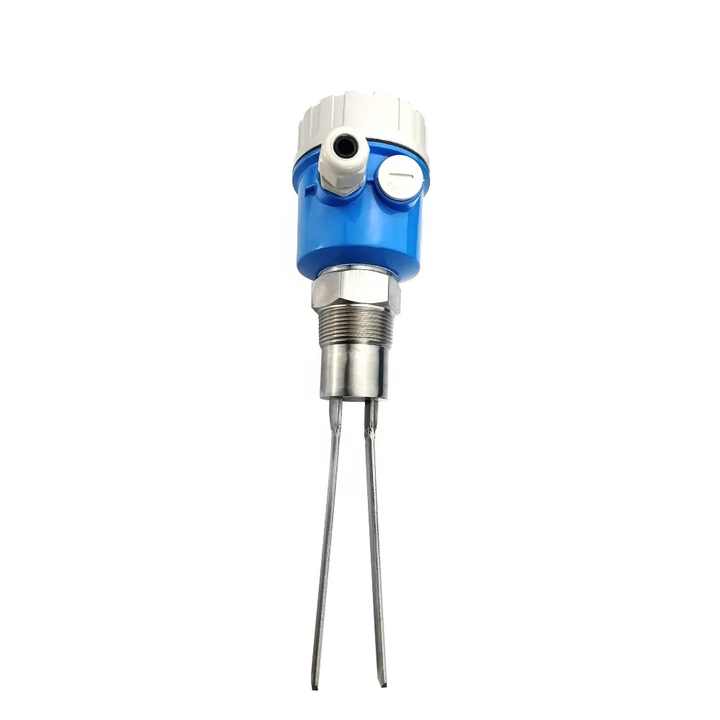

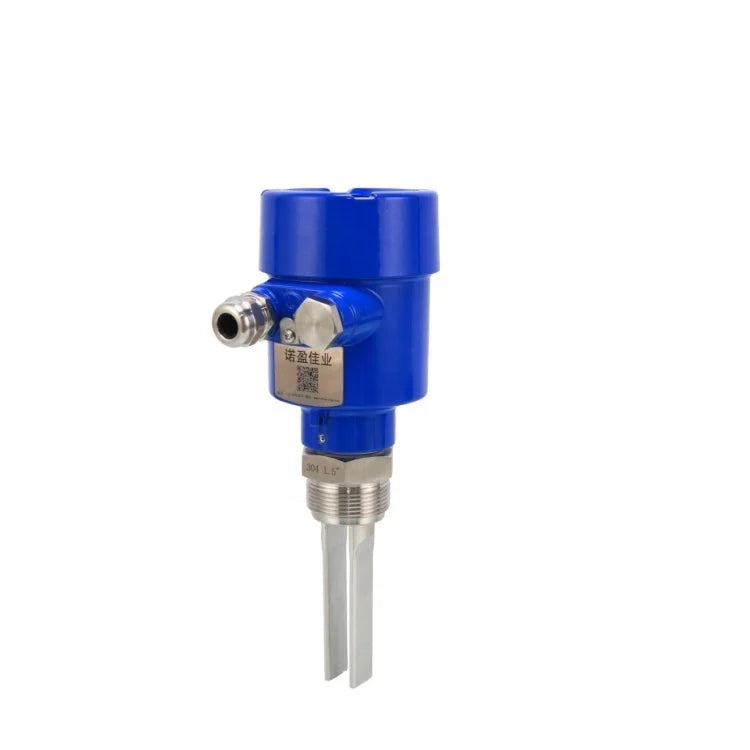

CE Certified Tuning Fork Level Switch Explosion-Proof Height Measuring Instrument
CE Certified Tuning Fork Level Switch Explosion-Proof Height Measuring Instrument
Regular price
$89.00 USD
Regular price
Sale price
$89.00 USD
Quantity
Couldn't load pickup availability
NYYCUK Tuning Fork Level Switch Level Controller Operating Principle NYYCUK tuning fork level switch is a new type of level switch. It is suitable for almost all liquid media, but also for the measurement of free-flowing, medium-density solid powders or granules. Since the tuning fork level switch basically has no moving parts, the mechanical wear is relatively low, so it does not need maintenance and adjustment, and is simple and convenient to use. In addition, the level switch adopts foreign new technology and original imported chips, which has the advantages of long service life, stable performance, safety and reliability, and strong adaptability (different electrical parameters and density of the measured medium will not affect the measurement) , No adjustment (no on-site adjustment is required no matter what medium is measured) and maintenance-free, it is widely used in the process control of material level in metallurgy, building materials, chemical industry, light industry, grain and other industries.
|
NYYCUK Tuning Fork Level Switch Specification
|
|
|||
|
Process pressure
|
-0.1-2Mpa(customized)
|
|||
|
Output
|
DPDT
|
|||
|
Temperature excursion
|
0.02%FS/℃
|
|||
|
Fork Length
|
150mm
|
|||
|
Power supply
|
24 VDC,220VAC
|
|||
|
Environment temperature
|
-25 ~ +85°C (>+125 ℃ Can Be Customized )
|
|||
|
IP Grade
|
IP67
|
|||
